How AI report reading reads a file
This is the detail behind AI report reading. Which files a fixed parser reads and which ones the AI reads. What gets checked, and in what order. Where your file goes, and the limits. Every result is advisory and waits for your registered surveyor.
Not open yet. Pilot firms run it on a real report with me first.
Advisory software: it flags items for your registered surveyor to review. It doesn't sign off survey work.
FORMATS
Fixed parsers first. The AI only reads the rest.
- 12d .rpt
- Fixed parser on my server, no AI
- 12d .fld
- Fixed parser on my server, no AI
- Trimble JobXML (.jxl, .xml)
- Fixed parser on my server, no AI
- PDF with a text layer
- The AI copies the text into the checking format
- CSV
- The AI copies the text into the checking format
- TXT
- The AI copies the text into the checking format
When a file doesn't fit
- A structured file the parsers can't use goes to the AI instead: an unknown 12d layout, a .fld with lengths that aren't in metres, a JobXML the parser refuses, or a JobXML with no coordinates and no setups.
- A PDF with no text layer is turned away. There's no text recognition.
- A JobXML with DTD or entity declarations is refused.
AI REPORT READING · HOW IT WORKS
Four steps, and the last one is yours.
Read
Fixed parsers read 12d .rpt, 12d .fld and Trimble JobXML. For a PDF, CSV or text report, the AI copies the text into the checking format and nothing else.
Which reader gets which file is in the Formats table above.
Reconcile
The file is checked against itself: traverse legs against the printed perimeter, declared record counts, and the coordinate system, datum, zone and units. Where the AI read a file, the fixed parser's values win.
Before any advisory check runs, the file is checked against itself:
- Traverse legs against the printed perimeter
- The angle count against the legs
- The record counts the file declares
- Your coordinate-system choice: GDA2020 / MGA zones 46–59, GDA94 / MGA zones 48–58, or local
- A missing datum, zone or units
- Coordinates against the MGA band
- Observation targets with no coordinates
Any blocking issue stops the checks there and marks the run for your surveyor.
Check
The advisory checks run, coordinate system first: prism constant, heights, backsight orientation, MGA zone, scale factor and more. A misclosure is checked only when the file prints one.
The reference-frame check runs first. If the frame is invalid, every tolerance check is skipped. Then:
- Prism constant
- Height consistency
- Backsight orientation
- Coordinate range
- Datum, CRS and geoid metadata
- Wrong MGA zone
- Scale factor
- GNSS quality
- Duplicate points
- RL jumps
- Linework geometry
Traverse misclosure is checked only when the file prints a closure.
A level loop is checked only when the file prints a loop misclose.
Hold for your surveyor
Every run is saved for review and labelled with who read it: the fixed parser or the AI. Nothing is confirmed until your registered surveyor confirms it.
- The run is saved as pending review.
- It's labelled “Read by parser. Review before use.”, or “AI-extracted. Review before use.” where the AI read the file.
- An admin reviews it once: accept or reject, with a note.
- Accepting records only that it was looked at.
- Nothing is confirmed until your registered surveyor confirms it.

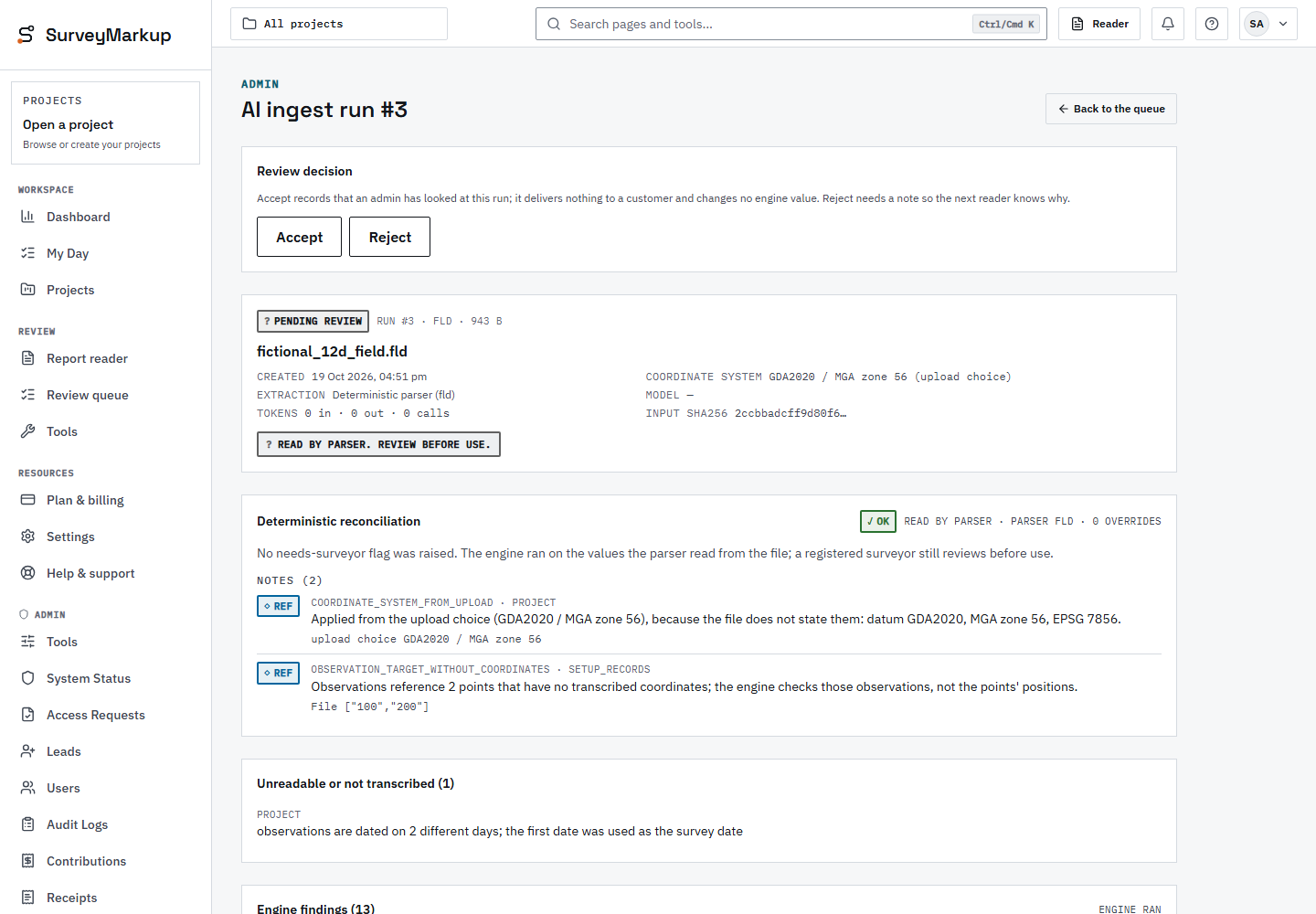

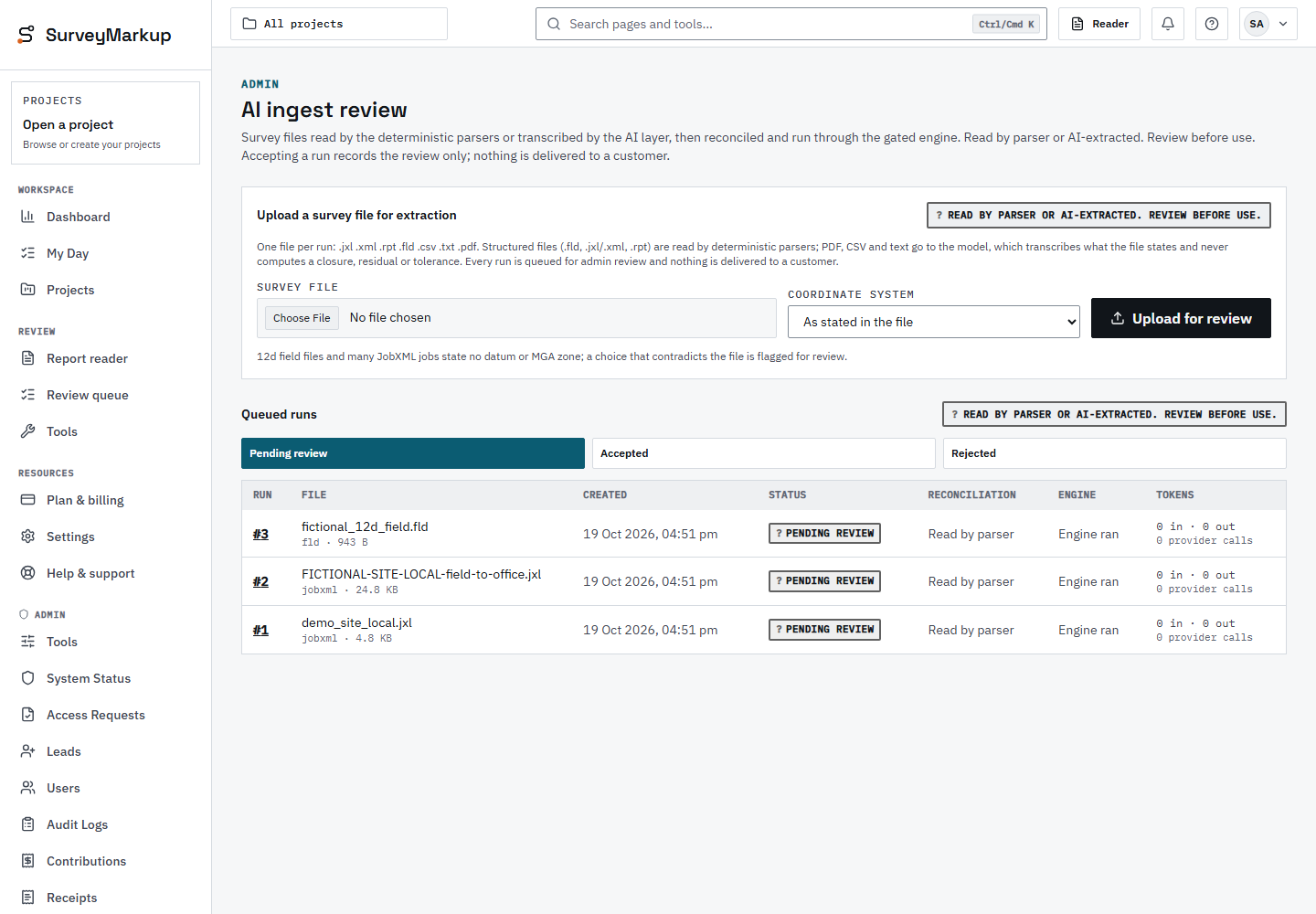

The review screen
WHERE YOUR FILE GOES
12d and JobXML files never reach the AI.
- 12d .rpt, 12d .fld, JobXML
- Read on my server by fixed parsers. Their contents don't go to the AI.
- PDF, CSV, TXT
- The file name and up to 40,000 characters of its text go to Anthropic, which copies them into the checking format. A scanned PDF with no text layer isn't read.
- Explanations
- Up to 3 per run, sent with the check's id and status only: no values and no coordinates. The summary sends counts only.
- What I keep
- The run and its results, for review. Your original file isn't stored.
LIMITS
The limits.
- Upload size
- 50 MB
- Text sent to the AI
- Up to 40,000 characters (longer text is cut, and the cut is recorded)
- Time to read a file
- 120 s
- PDF length
- Up to 200 pages
- Explanations
- Up to 3 per run
AI REPORT READING · SCOPE, STATED PLAINLY
What it does today, and what it doesn't yet.
Does today
- Yes: Reads 12d .rpt, 12d .fld and Trimble JobXML with fixed parsers, no AI
- Yes: Copies PDF (with a text layer), CSV and text reports into the checking format with AI
- Yes: Checks the file against itself before any advisory check runs
- Yes: Runs the advisory checks and holds every run for review
- Yes: Labels every result with who read it, parser or AI, and as advisory, for your registered surveyor
Not yet
- Not yet: Open to every firm (pilot firms first)
- Not yet: As-built reports
- Not yet: Level runs (only a printed loop misclose is checked)
- Not yet: Scanned PDFs (no text recognition)
- Not yet: Tested on real client reports (pilot firms help close this)
AI report reading is advisory. It reads a file, checks it and flags items for review. It doesn't sign off survey work. Every result stays a decision for your registered surveyor.
